The Aluminum Trefoil Cable Cleat is ideal for medium-high short circuit faults in less corrosive environments.
Read more
It is available in multiple sizes with cable range-taking capability and is suitable for trefoil cable arrangements. The cleat can be installed after running cable via a unique in the industry mounting bracket or before running cable through it by installing direct to the cable tray rung via a fixing hole and M8 bolt. Insulating spacers and washers are available to protect against galvanic corrosion between dissimilar cable tray rung and cable cleat materials. Test compliance to IEC 61914:2015. |

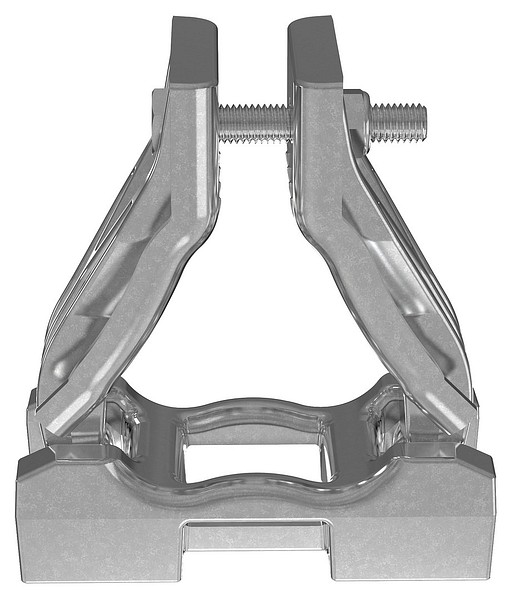

Cable cleat 27-30mm aluminium
CCALTR2730-X 10pcs/pack
Product number: 10460004399
Wholesale lot 10 Pcs
Sold in full packages. For smaller quantities, contact your nearest Megacenter store.
Details
Technical details
| Sales unit | Piece |
|---|---|
| Väri | Metal |
| Temperature resistance +°C | 60 |
| Weight kg | 0,388 |
| Min. bundle diameter mm | 27 |
| Properties | Flame-resistant |
| Max. bundle diameter mm | 30 |
| Standards | IEC 61914:2015 |
| Material | Aluminium |
| Operating environment | Indoor and outdoor |
| Minimum installation temperature | -40 |
