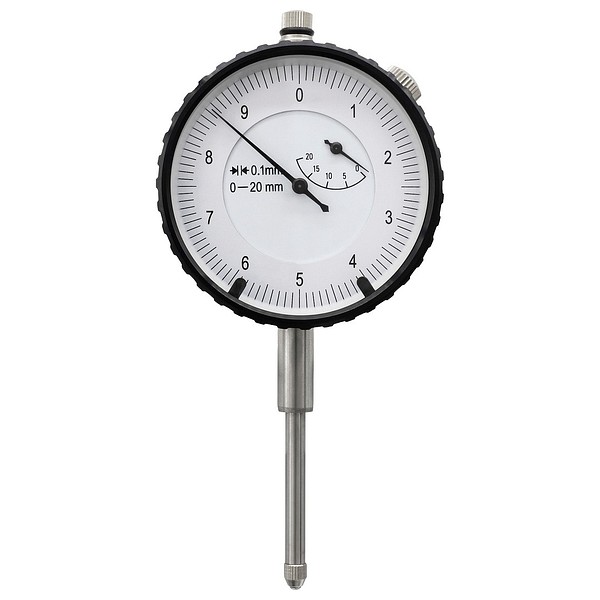

Dial indicator x 0.1 0-20 mm

Diesella Dial Indicator 0–20 × 0.1 mm is an analogue dial indicator designed for measuring small deviations in length and movement in applications such as machining, assembly, and various measuring jigs. The measuring range is 0–20 mm and the resolution is 0.1 mm, making the indicator suitable for general inspection and adjustment work where hundredth of a millimetre accuracy is not required, but the measurement result is easily readable on a large dial.

The outer ring of the dial can be rotated to the zero point, which makes the indicator easy to use for reference measurements. The bezel has two adjustable tolerance markers to indicate the upper and lower limits and to monitor at a glance whether the measured value remains within the specified limits. The dial indicator has a metal body and a hardened, ground Ø8 mm h6 mounting rod, which fits standard types of measuring stands and magnetic feet. The backplate has a flat cover and a separate 'lug' backplate, allowing the indicator to be attached from both the stem and the back as needed. It is supplied in a plastic protective case for easy storage and transport.

Key specifications:
- Indicator has a Ø60 mm dial
- Indicator has a measuring range of 0–20 mm
- Indicator has a resolution of 0.1 mm, scale 0–100
- Indicator has a metal case
- Indicator has a Ø8 mm mounting arm and two supplied back plates (flat and lug-mounted)
