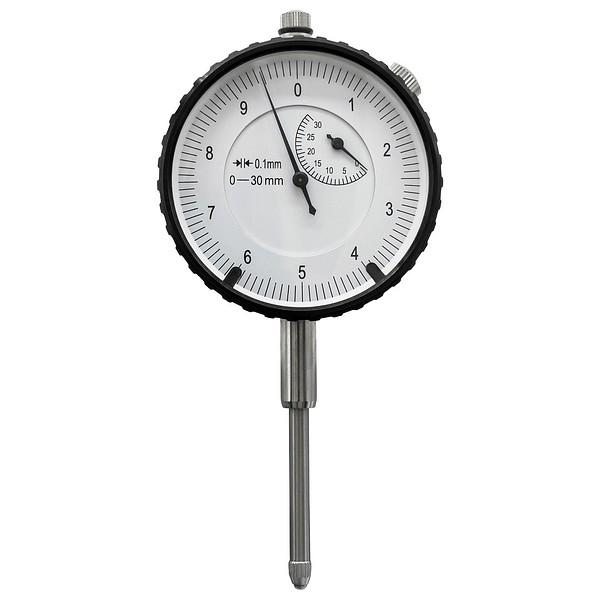

Dial indicator x 0.1 0-30mm

Diesella Dial Indicator 0–30 × 0.1 mm is an analogue dial gauge for measuring small deviations and movements in applications such as machining, assembly, and various measuring jigs. With a measuring range of 0–30 mm and a display step size of 0.1 mm, the dial gauge is ideal for general inspection and adjustment work where the accuracy of a hundredth of a millimetre is not required, but the measurement is easily readable on its large dial.

The outer ring of the dial can be rotated to the zero point, making the gauge easy to use for reference. The bezel has two adjustable tolerance markers to mark the upper and lower limits and to monitor at a glance whether the measured value remains within the specified limits. The dial gauge has a metal body and a hardened, ground Ø8 mm h6 mounting rod, which fits standard types of measuring stands and magnetic feet. The back plate has a flat cover and a separate "lug" back plate so that the gauge can be attached from both the stem and the back as required. The gauge comes in a plastic protective case for easy storage and transport.

Key specifications:
- The gauge has a Ø60 mm dial
- Measuring range 0–30 mm
- Resolution 0.1 mm, scale 0–100
- Metal case
- Ø8 mm mounting arm and two supplied back plates (flat and lug-mounted).
