Digital ABS AOS Caliper, ID/OD Carb. Ja.

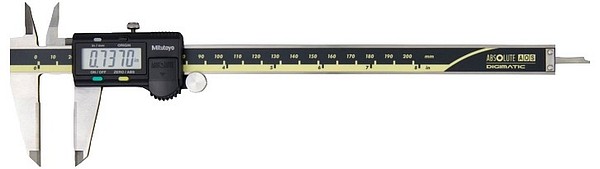

Mitutoyo Digital ABS AOS Caliper ID/OD with Carbide Measuring Surfaces

This is a versatile and accurate digital caliper equipped with carbide measuring surfaces for ID/OD (for measuring inside and outside dimensions). This model combines the ABSOLUTE measuring system with an AOS inductive sensor, providing reliable measurement results even in challenging industrial environments where the measuring surfaces may come into contact with oil, dust, or moisture.

Key features

- Measuring range: 0–8" and 0-200mm
- Resolution: 0.0005" and 0.01mm
- Accuracy: ± 0.02mm - reliable results for external and internal measurements
- ID/OD jaws: carbide measuring surfaces for accurate measurement of external and internal dimensions
- ABSOLUTE measurement: no need to reset after power on - the zero setting is retained
- AOS inductive sensor: works stably even in dirty environments (oil, dust, or moisture)
- LCD display: clear and easy to read
- Finger adjustment: ergonomic scrolling for smooth and controlled sliding
- Functions: Zero/ABS, low voltage indication, measurement position memory

Why this model is an excellent choice

The caliper is designed to measure both small and large external (OD) and internal (ID) dimensions with a single tool. Hard metal surfaces increase wear resistance, allowing the instrument to maintain its accuracy over a long period, even when measuring hard materials. The ABSOLUTE system ensures that the caliper is always ready for use without needing to be reset, and the AOS sensor allows accurate measurements in environments where measurements may be taken in dirty or wet conditions.

Applications

- for measuring external and internal dimensions in machine shops and production plants
- for quality control and component approval measurements
- for workshop measurements and maintenance work where both ID and OD measurements are required
- environments where measurements may be taken in dirty or wet conditions

Contents of delivery

- Mitutoyo 500-164-30 digital caliper
- SR44 battery
- User manual
- Inspection certificate (not calibration)
- Protective case
