Digital ABS AOS Caliper, OD Carb. Jaws

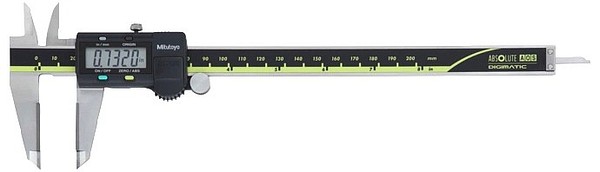

Mitutoyo 500-176-30 - Digital ABS AOS Caliper, Carbide Coated Jaws (OD Carbide Jaws)
The Mitutoyo 500-176-30 is a state-of-the-art digital caliper that combines the ABSOLUTE measuring system with an AOS inductive sensor to ensure accurate, repeatable, and reliable measurement of outside dimensions. This model is equipped with carbide coated outer jaws (OD Carbide Jaws), which enhances the durability and lifespan of the measuring surfaces, especially when measuring hard materials.
Key features
- Measuring range: 0–200 mm / 0–8″ – wide range for versatile outside measurements
- Resolution: 0.01 mm / 0.0005″ – accurate and easy-to-read measurement
- Accuracy: ± 0.02 mm / ± 0.001″ – reliable and repeatable measurement result
- Carbide coated outer jaws: increases the durability of measuring surfaces when measuring hard materials over long periods of use
- ABSOLUTE measurement: no need to reset after switching on – the caliper automatically detects the correct measurement position
- AOS inductive sensor: performance does not degrade on dirty scales (oil, dust, humidity)
- ZERO/ABS function: zero point can be set at any point for temporary reference measurements
- SPC compatibility: allows transfer of measurement results to quality control systems
- LCD display: clear and easy-to-read display
- Ergonomic operation: finger adjustment wheel for smooth gliding and a comfortable user experience
- Long battery life: several years of use without battery replacement under normal use
Why choose Mitutoyo 500-176-30
This digital caliper is specially designed for measuring Outside Dimensions (OD) quickly and with high accuracy. The carbide coated measuring surfaces improve the caliper's durability when measuring hard surfaces or repeatedly measuring materials. The ABSOLUTE measuring system ensures that the caliper operates correctly immediately upon switching on, without the need for resetting, increasing user comfort and saving time.
The AOS inductive sensor ensures stable signal operation even in working environments where the measuring surface may be exposed to contaminants such as oil or dust. The ZERO/ABS function gives you the flexibility to perform both absolute and relative measurements with the same tool.
