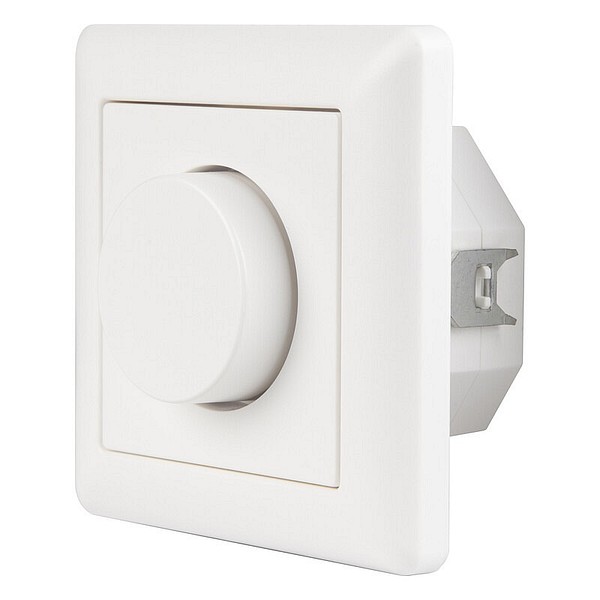

Dimmer (light control) 2628014

LEDVANCE MCU SELECT product family includes DALI-2 light controllers with a rotary knob, making it easy to implement intuitive room-by-room lighting control. The controller can be installed in a flush-mounting box or a separately ordered surface-mounting frame for surface installation. By connecting four active controllers in parallel, up to 100 luminaires can be controlled. The cover plate, knob, and frame are interchangeable with, among others, Schneider and ABB accessories. An adapter sleeve for the ABB knob is included.

Key technical specifications:

• Rated power: 2.7 W


• Operating voltage and current: 100...240 V, 48 mA


• Dimming method: DALI-2


• Number of luminaires: 25 per active controller


• Maximum DALI cable length: 300 m


• Control features: colour temperature control (TW), dimming 1...100 %


• No separate application required, Plug&Play installation


• Ingress protection rating: IP20


• Dimensions (width/height/depth): 80 x 80 x 53 mm


• Operating temperature: -20...+50 C


• Product warranty: 5 years

Applications: Meeting rooms, offices
