The mobile access platform provides safe and ergonomic access to a vehicle or onto its upper structures. Its robust construction and R10 ribbed aluminum surface allows safe access and the 60° inclination of stairs offer a space-efficient solution for areas with limited room. The platform is well suited for long-duration tasks, even when force and tools are required.
Read more
The platform is easy to move thanks to the wheels, and can also be equipped with the ERGO Stop central brake, which locks all wheels with a single pedal press for quick and secure positioning. Quick and simple assembly with the ZARGES connection system, high level of pre-assembly. The product is made to order. The railing configuration can be adapted as needed. Alternative railing solutions as well as additional accessories are available upon request and must be specified when ordering. With the ZARGES Creaxess configurator, you can tailor the platform to your workplace requirements. The product can be customized as follows: - Platform height selectable in 10 mm increments - Width options 600 / 800 / 1000 mm - Platform length selectable in 100 mm increments, up to 3000 mm - Staircase inclination 45° or 60° - Lockable wheels or ERGO Stop central locking - Step material options: serrated aluminum, yellow warning steps, steel grating, aluminum grating - Railings and gates can be defined according to site-specific risk assessment - Bumpers and additional accessories available Design your own access platform! When logged in, you will receive a quotation. Use the drawing number provided when placing your order with us. |

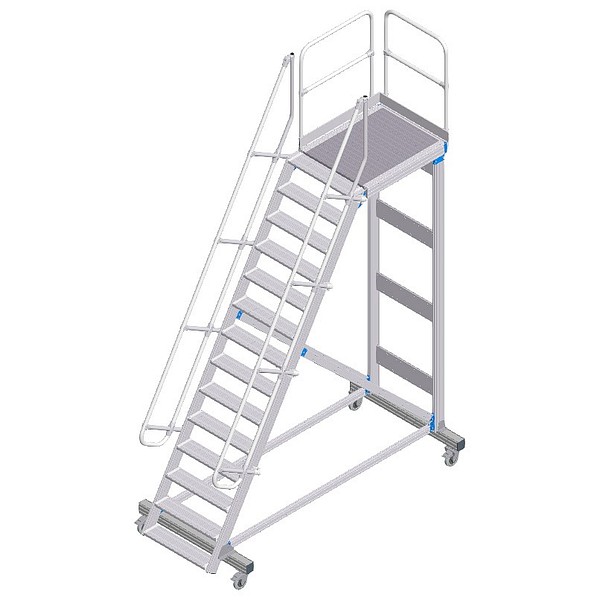

Mobile access walkway for trucks
ZARGES 903312777
Product number: 10360065709
Details
Videos
Technical details
| Sales unit | Piece |
|---|---|
| Loading capacity kg | 300 |
| Step width mm | 800 |
| Platform height m | 3,5 |
| Platform length mm | 1000 |
Documents
| Load Product data sheet |
