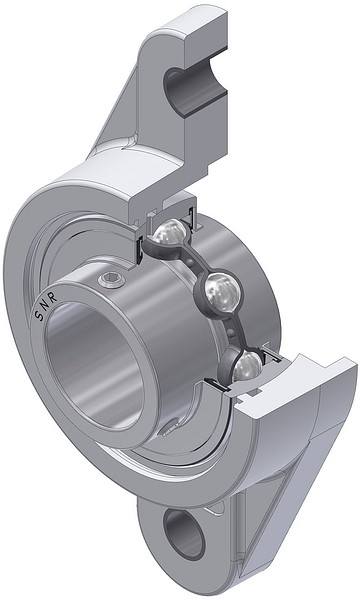

MUCNFL204 Bearing SNR

SNR Plastic bearing
Product number: 10300050195
Pcs

Details

Details
SNR's SENTINEL series of bearing units are specifically designed to meet the requirements of the food industry, combining hygiene, detergent resistance, safety and bearing durability on production lines.

Features and benefits:
• SENTINEL with LUBSOLID lubrication (FG1 suffix): solid lubricant (NSF H1) prevents contaminants and water from entering the bearing and eliminates the risk of lubricant leakage
• Also available with conventional lubricant (NSF H1)
• Stainless materials (alternatively stainless steel or thermoplastic housings)
• Sealing and protection: prevents water, cleaning agents and contaminants from entering the bearing
• Long service life and low maintenance
• Sustainable bearing design significantly reduces grease and bearing consumption

The strengths of SENTINEL bearings are particularly evident in:
• Conveyor systems in the food industry
• Bottling and packaging lines
• Washing lines
• Wet and demanding production environments
• Difficult-to-maintain applications
Read more

Technical details

More Information
Sales unit Piece
External Ø mm 47
Width mm 31
Weight kg 0,25
Axle type Cylinder
Clearance C3
Protection Rubber
Distance between attachment bolts (mm) 90
Internal Ø mm 20
Number of mounting bolts 2
Basic dynamic load rating (kN) 10,9
Basic static load rating (kN) 5,3
Housing length mm 113
Housing height mm 26,5
Housing width mm 64,8
Housing material Thermoplastic
Height bottom to center of bearing mm 15,4
