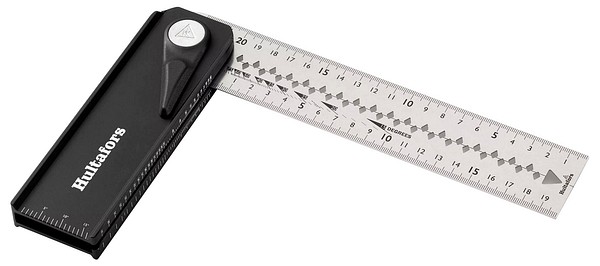

Quattro bevel square 25cm

Innovative adjustable right angle that also functions as a transfer angle and angle gauge. The blade can be rotated to fixed angles of 45°, 90°, and 135° (180°, 225°, and 270°). If you rotate the blade beyond 180 degrees, you can also use the opposite side of the frame, which has no gap through which, for example, thin sheet parts can slip. When you turn the lever, it can also be used as a transfer angle to replicate any angle between 0 and 270 degrees. The lever can also be used to lock the desired angle. Both the blade and the handle have a scale that measures angles between 0 and 90 degrees. The right angle is fully foldable, making it easy to store and carry in a work trouser pocket. The blade is 45 mm wide for compatibility with standard pin measurements, and it features a center line that makes it easy to mark both sides of the pin quickly. The blade also includes notches spaced 5 mm apart, which can be used for drawing or cutting a line parallel to the edge. A durable hinge and a 25 cm long blade made from 1 mm thick, strong stainless steel provide a highly robust structure for demanding work environments that will last. Carefully selected materials and manufacturing techniques, such as CNC-milled frame and precision laser-cut blade, offer high precision; angle tolerance ±0.06° (±1 mm/m).
