Application:
Read more
- Fastening profiled steel sheets to 1,5–4 mm steel substructures - Fastening profiled aluminium sheets and sandwich panels to 1,5–4 mm steel substructures Properties: - Stainless steel A2 with a hardened drill point - Stainless steel A2 sealing washer diameter of 16 mm - Pre-assembled sealing washer - Drilling capacity 2+4 mm Approvals: ETA-10/0200, ETA-13/0177, ETA-22/0126 ETA approval page (ETA-10/0200): 76-80 (Annex 63-67) ETA approval page (ETA-13/0177): 23 (Annex 16) ETA approval page (ETA-22/0126): 12 (Annex 7) Material: Stainless steel A2 |

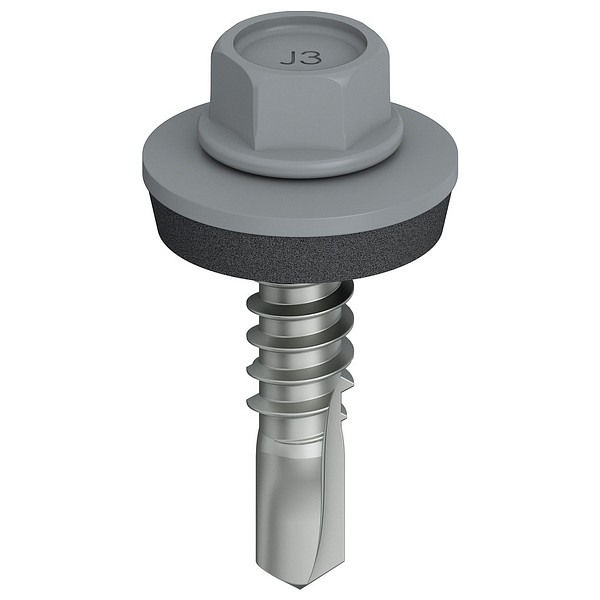

Sdr screw JT3-6-5,5x25-E16 RAL9006
Drill point A2 SW8 washer A2 paint
Product number: 702929455251
Wholesale lot 100 Pcs
Sold in full packages. For smaller quantities, contact your nearest Megacenter store.
Details
Technical details
| Sales unit | Piece |
|---|---|
| Vääntiö | AV8 |
| Mounting thickness mm | 0-7 |
| Material | A2 |
| Length mm | 25 |
| Drilling capacity mm | 6 |
| Base type | Hexagon |
| Max. rotation speed (1/min) | 1300 |
| Diameter mm | 5,5 |
