Applications:
Read more
- Attachment of sandwich panels to steel substructures with a thickness of 1,5–5 mm Features: - A2 stainless steel and hardened steel drill tip - Stainless steel sealing washer - Pre-assembled sealing washer - Threadless section under the screw head - Support thread (Ø6.3 mm) Additional Information: Other lengths available upon request. Approval: ETA-13/0177: Annex 4-6 / With washer Material: Stainless steel A2 |

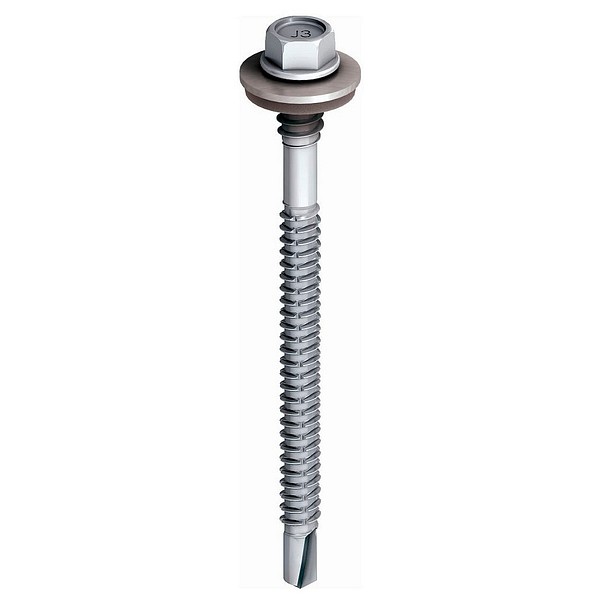

Sdr screw JT3-D-6H-5,5/6,3x237-E19
Drill point A2 SW8 support thread
Product number: 702931255237
Wholesale lot 100 Pcs
Sold in full packages. For smaller quantities, contact your nearest Megacenter store.
Details
Technical details
| Sales unit | Piece |
|---|---|
| Vääntiö | AV8 |
| Mounting thickness mm | 171-218 |
| Support thread Ø mm | 6,3 |
| Material | A2 |
| Length mm | 237 |
| Drilling capacity mm | 6,5 |
| Base type | Hexagon |
| Max. rotation speed (1/min) | 1300 |
| Diameter mm | 5,5 |
