Application:
Read more
- For universal use in wood and board joints - No pre-drilling needed - Clean and finished results Properties: - Carbon steel, countersunk head, partial thread, Torx, T-STAR plus - Eco-friendly and mechanically strong WIROX coating 480h, with corrosion resistance grade 5 according to DIN EN 1670 = excellent corrosion resistance - Case hardened, teflon as synthetic lubricant - Wave profile thread and multi-head with milling ribs - 4CUT point and 4CUT cutter for screw lengths of 160 mm and larger - CE marked - RoHS compatible - REACH SVHC free Torx, T-STAR plus: - screws 3 mm = T10 - screws 3.5–5 mm = T20 - screws 6 mm = T30 |

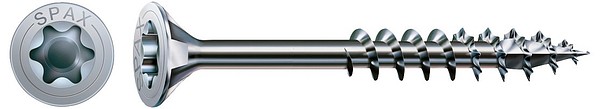

Spax Flat-head WIROX TX20 4,5x40
Screw partial thread 200pcs/box
Product number: 70298710450400
Details
Technical details
| Available from central warehouse | Yes |
|---|---|
| Sales unit | Box |
| CE certificate | Yes |
| Length mm | 40 |
| Vääntiö | TX20 |
| Material | Steel |
| Drive type | T-STAR plus |
| Thread length mm | 25 |
| Head diameter mm | 8,8 |
| Head underside | MULTI head |
| Tip | 4CUT |
| Head angle º | 90 |
| Coating | Wirox |
| Corrosion protection code | A9J |
| Thread type | Partial thread |
| Base type | Flat-head |
| Diameter mm | 4,5 |
Documents
| Load Certificate | |
| Load Certificate 2 |
