Application:
Read more
- For universal use in wood and board joints - For fastening metal plates - Trims, panels - No pre-drilling needed - Clean and finished results Properties: - Carbon steel, pan head Torx, Torx, T-STAR plus - Eco-friendly and mechanically strong WIROX coating 480h, with corrosion resistance grade 5 according to DIN EN 1670 = excellent corrosion resistance - Case hardened, teflon as synthetic lubricant - Wave profile thread and multi-head with milling ribs - 4CUT point - CE marked - RoHS compatible - REACH SVHC free Torx, T-STAR plus: - screws 3 mm = T10 - screws 3.5–5 mm = T20 - screws 6 mm = T30 |

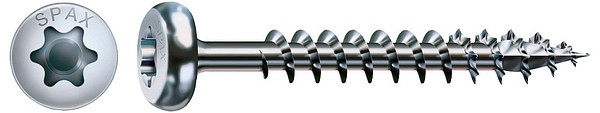

Spax Round head WIROX TX20 5,0x70
Screw full thread 200pcs/box
Product number: 7029951050701
Details
Technical details
| Available from central warehouse | Yes |
|---|---|
| Sales unit | Box |
| CE certificate | Yes |
| Vääntiö | TX20 |
| Drive type | T-STAR plus |
| Thread length mm | 61 |
| Head underside | No additional features |
| Material | Steel |
| Head diameter mm | 9,9 |
| Length mm | 70 |
| Thread type | Full thread |
| Base type | Raised countersunk |
| Corrosion protection code | A9J |
| Diameter mm | 5 |
| Tip | 4CUT |
| Coating | Wirox |
Documents
| Load Certificate | |
| Load Certificate 2 |
