Application:
Read more
- For massive or other demanding timber connections - No pre-drilling needed - Wide range of applications because the maximum length of the screw is 600 mm. - Clean and finished results Properties: - Carbon steel, countersunk head, partial thread, Torx, T-STAR plus - Eco-friendly and mechanically strong WIROX coating 480h, with corrosion resistance grade 5 according to DIN EN 1670 = excellent corrosion resistance - Case hardened, teflon as synthetic lubricant - Wave profile thread and multi-head - Milling ribs making a clean milling in wood and function as brakes in metal for accurate driving. - 4CUT point - CE marked - RoHS compatible - REACH SVHC free Torx, T-STAR plus: - screws 8 mm = T40, head diameter 15.1 mm - screws 10 mm = T50, head diameter 18.6 mm - screws 12 mm = T50, head diameter 22.6 mm |

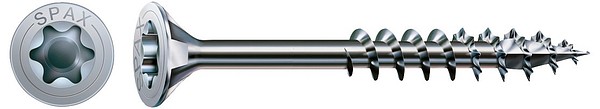

Spax wood constr.screw TX40 8x120
WIROX CSK partial thread 50pcs/box
Product number: 702988308120
Details
Technical details
| Available from central warehouse | Yes |
|---|---|
| Sales unit | Box |
| CE certificate | Yes |
| Length mm | 120 |
| Vääntiö | TX40 |
| Material | Steel |
| Drive type | T-STAR plus |
| Thread length mm | 70 |
| Head diameter mm | 15,1 |
| Head underside | MULTI head |
| Tip | 4CUT |
| Head angle º | 90 |
| Coating | Wirox |
| Corrosion protection code | A9J |
| Thread type | Partial thread |
| Base type | Flat-head |
| Diameter mm | 8 |
Documents
| Load Certificate | |
| Load Certificate 2 |
