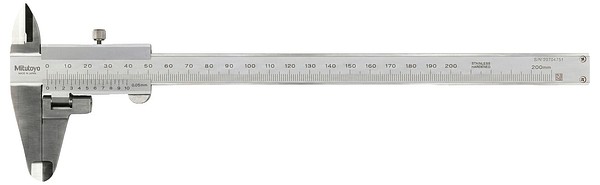

Vernier Caliper Swivel Jaw

Top quality Mitutoyo marking caliper made in Japan. Mitutoyo is an accredited manufacturer of measuring instruments (ISO/IEC 17025), which guarantees that calibration certificates are globally accepted and can be used, for example, in quality management, audits and customer inspections. This marking caliper with screw lock is especially suitable for measuring shafts and stepped objects thanks to its rotating slot. Specially precise rotating jaw – enables measurements on objects that would be challenging or impossible with a traditional caliper. Excellent accuracy and repeatability – both EMPE and SMPE error margins are at a low level, which guarantees reliable results.

Key features
• Measuring range 0–200mm – suitable for making both small and medium-sized measurements.
• Graduation accuracy (graduation): 0.05mm – also sufficient for finer measurement needs.
• Max. Permissible Error: ±0.05mm (EMPE), ±0.07mm (SMPE) – provides a clear picture of the repeatability of measurement accuracy.
• Hardened stainless steel as cone material – resists wear and keeps the sliding surface smooth.
• Sliding head swiveling slot mechanism (±90°) – enables measurement on uneven and varying shaft surfaces
• Depth bar included – an additional feature that expands measurement possibilities, for example in drilling and countersinking measurements.
• Chrome-plated scale – easy to read and withstands the demands of industrial use.
